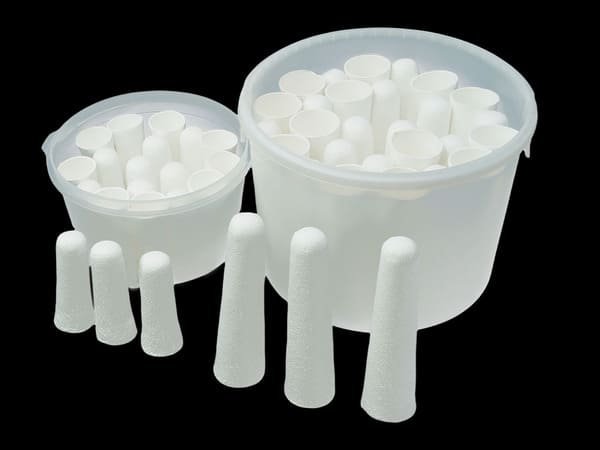

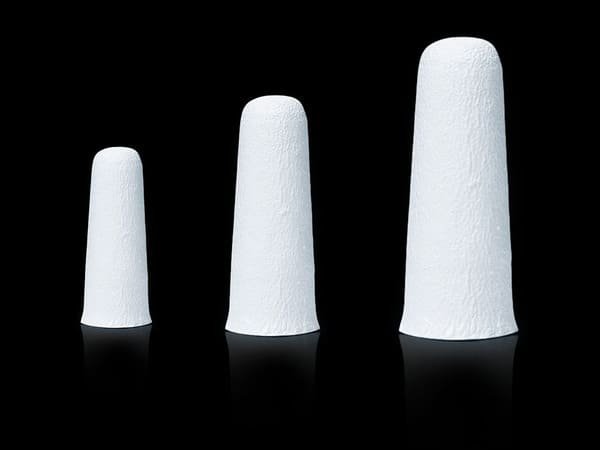

GLASS MICROFIBER THIMBLES
High-Temperature Extraction Solutions for Specialized Applications
Description
High-purity glass microfiber thimbles manufactured from 100% pure borosilicate glass are available for specialized applications. The thimbles are completely free of binders or additives and can be used at temperatures up to 500°C or when using solvents that are incompatible with cellulose thimbles. These thimbles are also used in pollution monitoring techniques (0.8 μm nominal particle retention). Typical thickness: 1.7 mm
Features & Benefits
• Available in a range of sizes and wall thicknesses to suit your application
• Designed to fit most commercially available Soxhlet extractors
• No binders are added
• High-temperature resistance up to 500°C
• Compatible with aggressive solvents
Applications
• Smokestack gas monitoring
• Soxhlet extraction
• Analyzing pesticide residues
• Determining oil or fat content of foods (e.g., French fries)
• Analysis of oil and grease in solid wastes
Technical Specifications
product name | Size(mm) | Weight (g/㎡ ) | Wall Thickness (mm) | Air Flow at 2 bar (L/㎡ sec) | Quantity/pack |
Glass Microfiber Thimbles | 19 x 90 | 1.6 | 1.2 | 22 | 25 |
22X80 | 2 | 1.6 | 21 | 25 | |
25X100 | 2.7 | 1.6 | 21 | 25 | |
26X60 | 1.8 | 1.5 | 18 | 25 | |
25X80 | 1.9 | 1.5 | 18 | 25 | |
30 x 100 | 3 | 1.5 | 33 | 25 | |
33 x 94 | 3.5 | 1.5 | 29 | 25 | |
| 43X123 | 6.5 | 1.7 | 50 | 25 |
Customized other specifications and sizes
